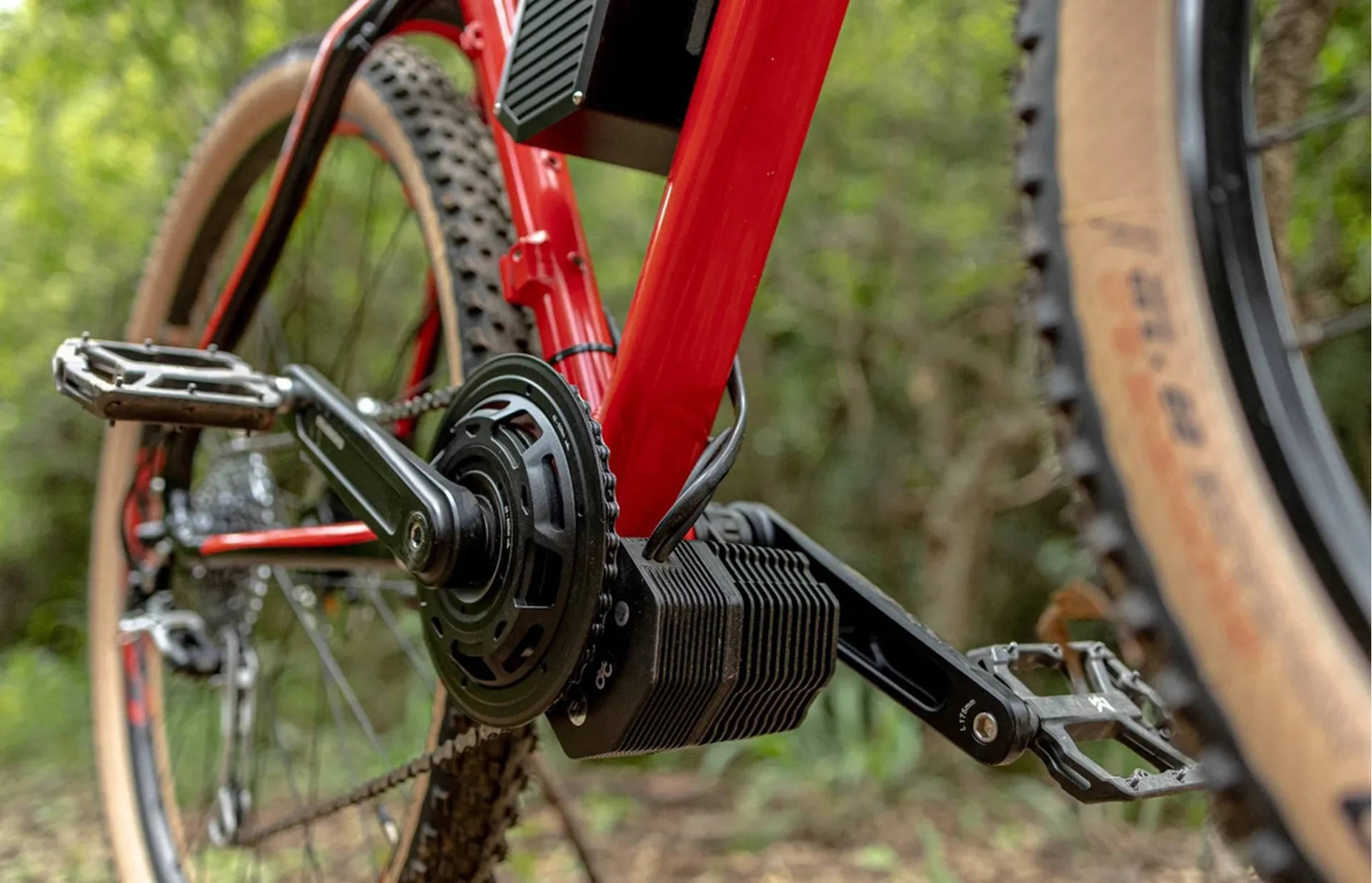

The Photon 250w Mid Drive Motor Kit is an advanced torque sensing technology that offers a seamless and intuitive pedal assist experience. With a helical gear design, the quality is uncompromised while giving you a silent ride.Compact and lightweight, the system offers subtlety and adaptability.
The Photon 250w Mid Drive Motor Kit is an advanced torque sensing technology that offers a seamless and intuitive pedal assist experience. With a helical gear design, the quality is uncompromised while giving you a silent ride.Compact and lightweight, the system offers subtlety and adaptability.
Cycmotor

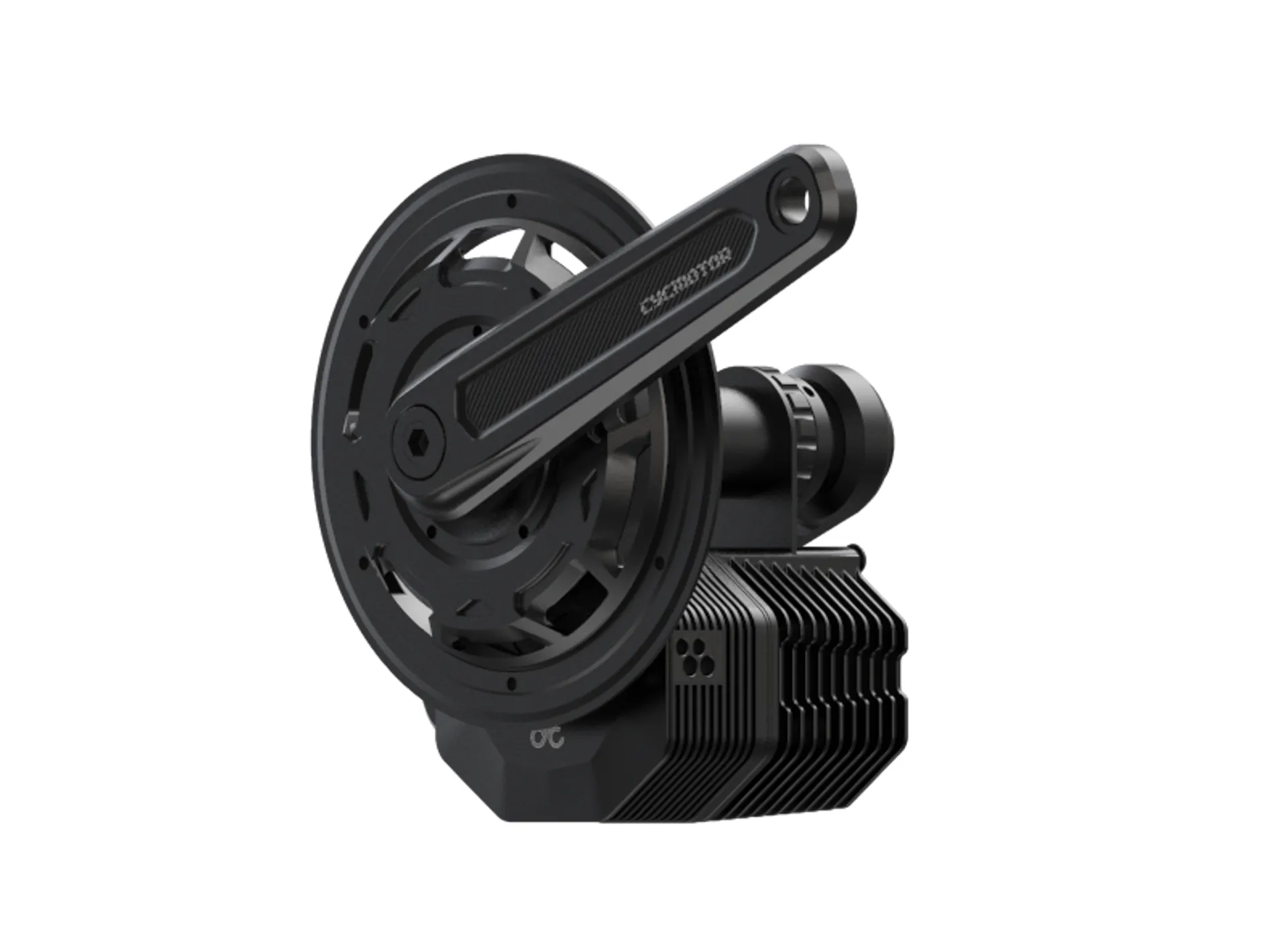

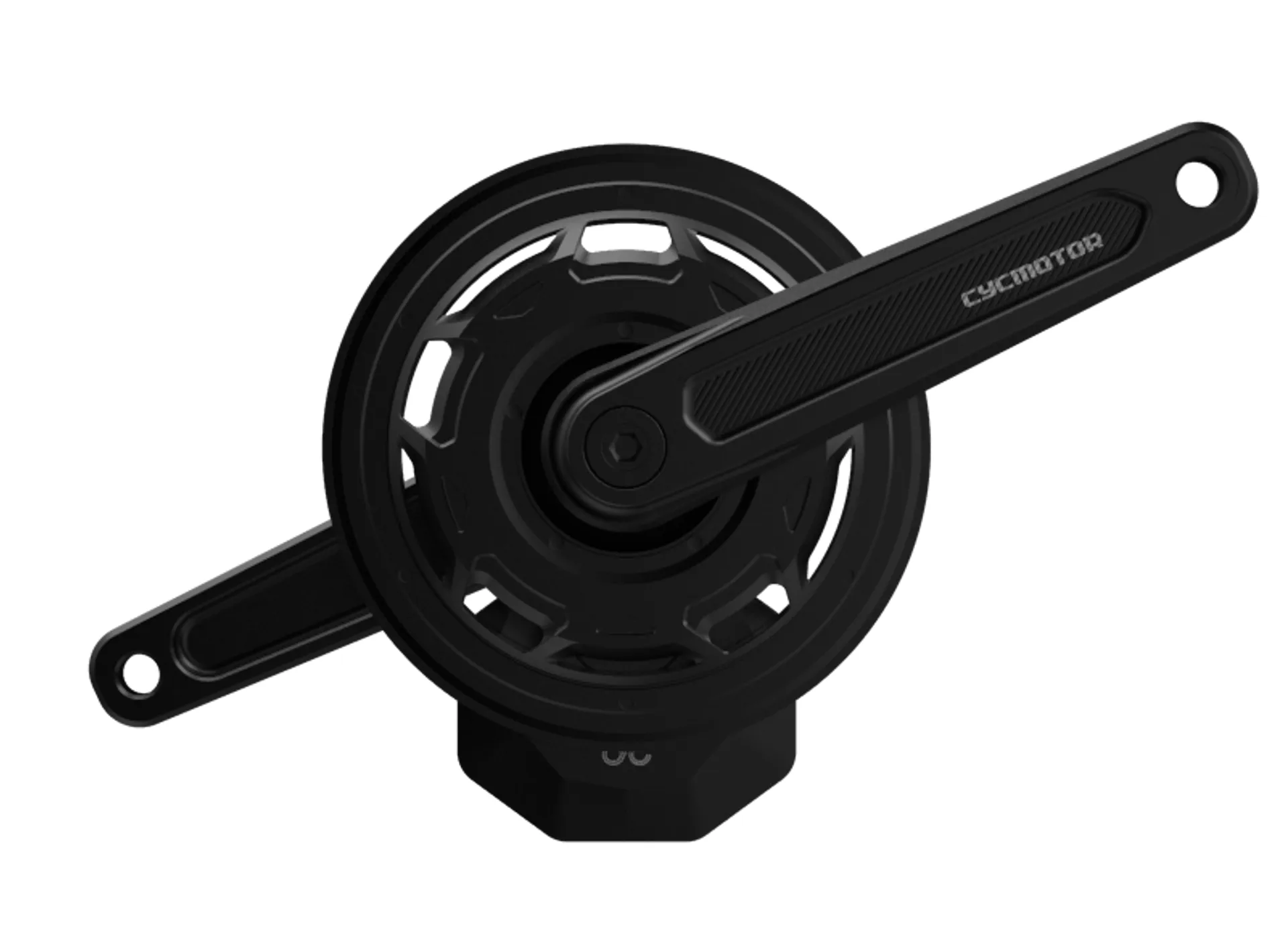

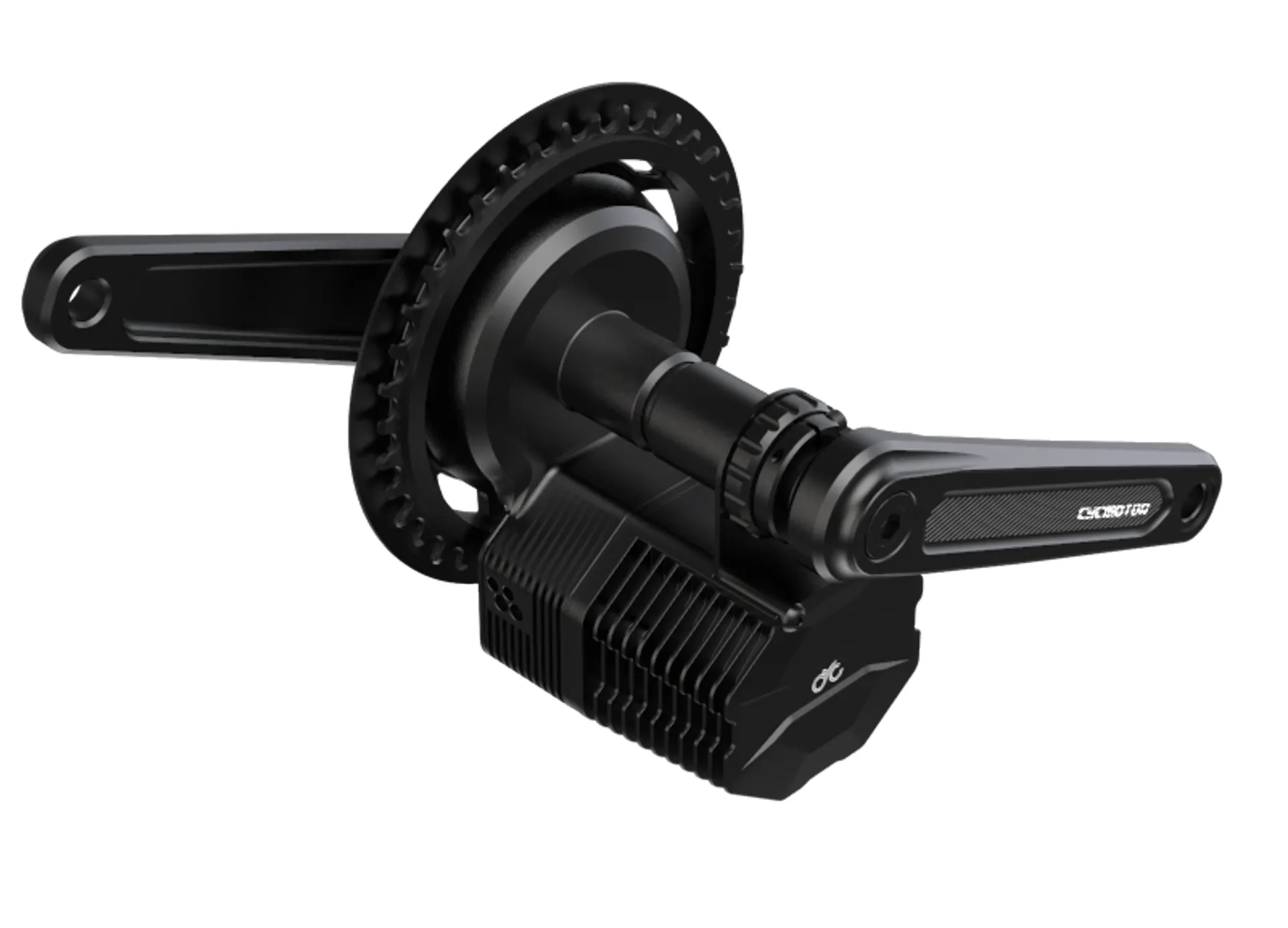

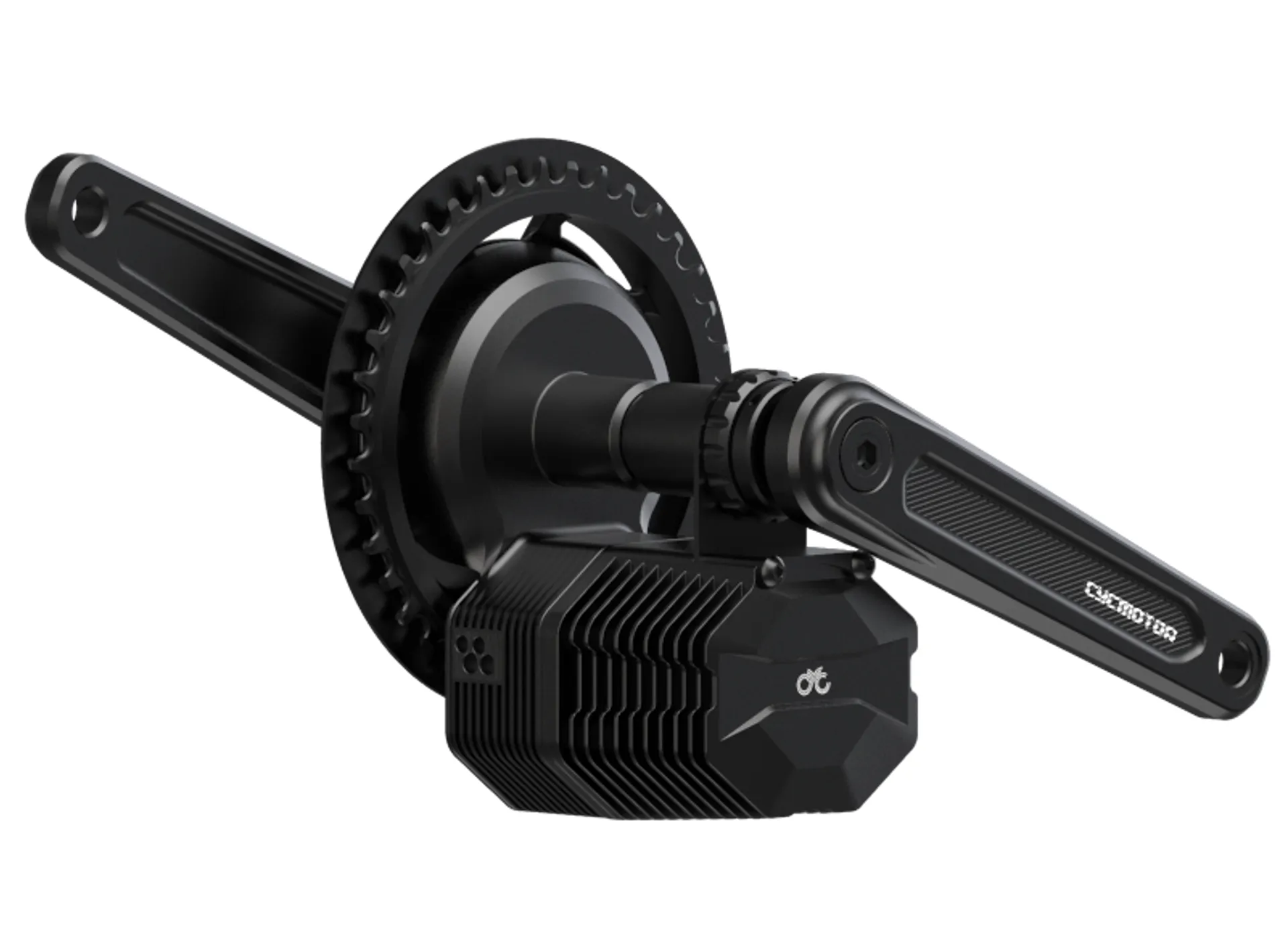

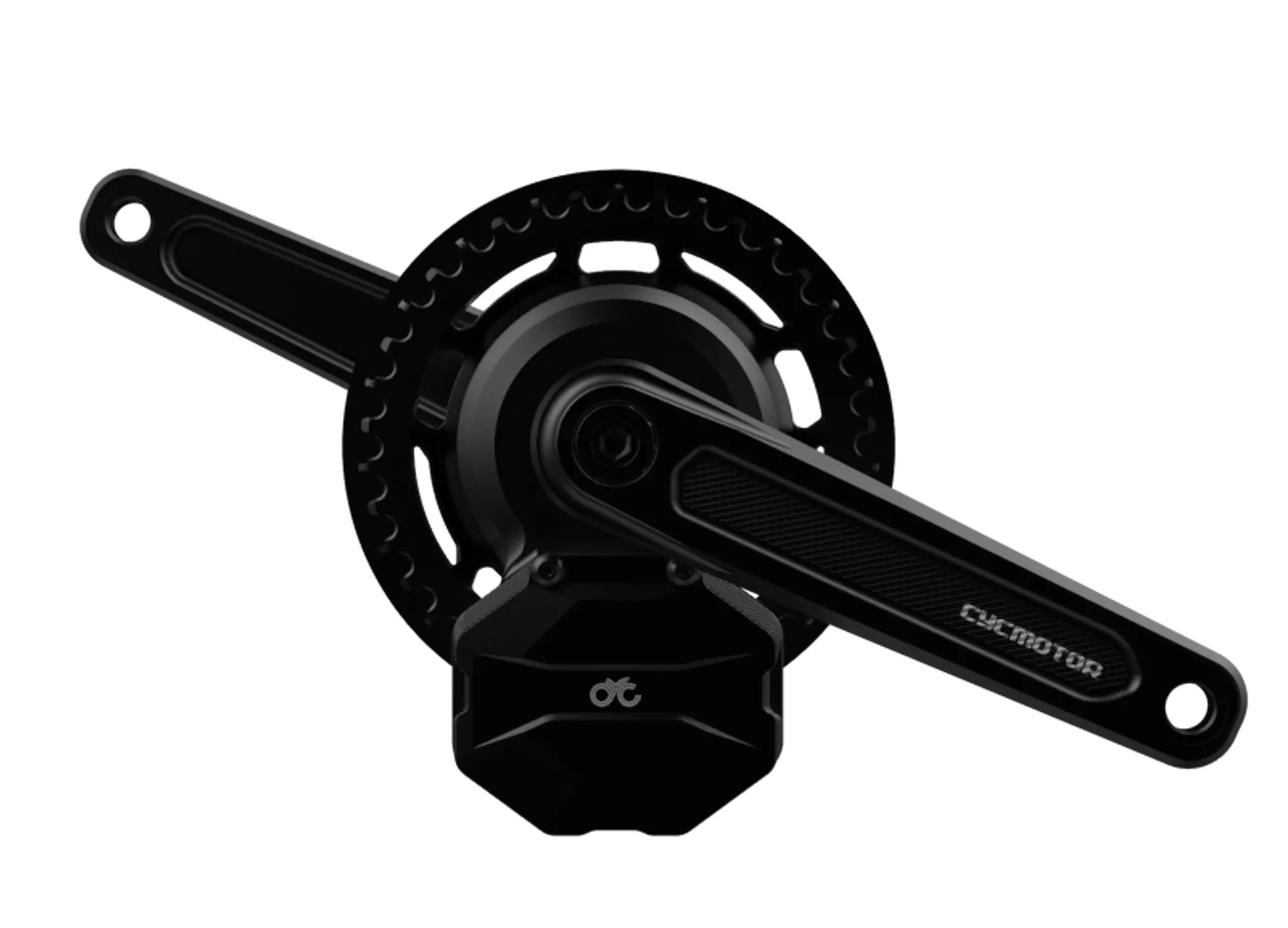

CYC Photon Mid Drive Motor Kit 100mm

£1,050.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately, we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused, must be in the original packaging and in the same condition that you received it. To complete your return, we require a receipt or proof of purchase.

Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases. Additional non-returnable items: Gift cards and some health and personal care items.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable within the seller's discretion)
Any item not in its original condition is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 14 days after collection or delivery.


REFUNDS (if applicable)
Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 7-14 working days.


LATE OR MISSING REFUNDS (if applicable)
If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted. If you’ve done all of this and you still have not received your refund yet, please contact us at info@thecyclemot.co.uk.


SALES ITEM (if applicable)
We do not offer refunds on sale items.


EXCHANGES (if applicable)
We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@thecyclemot.co.uk with your full name, email address, order ID or transaction ID (if you made the purchase directly from our store). If possible, then please attach a copy or image of the purchase receipt. Please returnyour item to 357-359 FOREST ROAD, LONDON, E17 5JR, United Kingdom.


SHIPPING YOUR RETURN
To return your product, you should ship your items to the following address including your order and contact details:
The Cycle MOT
357-359 Forest Road, London
E17 5JR, United Kingdom.

You will be responsible for paying for your shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.


CUSTOMISED RETURNS
Under exceptional circumstances, and only at the Seller’s discretion, some Goods can be returned on the condition that the Buyer covers a 35% restocking fee. Unlimited additional charges to the Buyer may also be incurred depending on the condition of the Goods returned. It is the Seller’s prerogative to determine the sum of any additional costs over and above the 35% restocking fee.

The Buyer is responsible for returning the Goods to the Seller, and for ensuring they are returned in a saleable condition, including a Sales Receipt and original packaging. Refunds can only be processed upon Seller’s receipt of the returned Goods, and only after the returned Goods are inspected and assessed for wear and/or damages.

We do not accept any returns on custom-ordered goods. Custom-ordered goods include any bikes, parts, and/or equipment that need to be ordered into the shop specifically to meet the Buyer's requirements or demands (e.g. bikes, components, or equipment not typically stocked and specially ordered in specific colours, sizes, or designs).

As we sell second-hand bikes, we do not accept returns on refurbished or second-hand goods. We aim to repair or fix the fault or replace the damaged components. We can in exceptional circumstances exchange your bike for another of your choice of the same value in stock and/or a difference in payment can be paid if required on a higher-value bike.

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@thecyclemot.co.uk and send or bring your item to the Main Store: 357-359 FOREST ROAD, WALTHAMSTOW LONDON, E17 5JR, United Kingdom.

CYC Photon Mid Drive Motor Kit 100mm

Season:2025

Brand:Cycmotor

Code:CYCPHOTON100

The new CYC motors are equipped with the Gen 3 torque sensing technology exclusively developed in-house by our team of engineers and riders. Together they achieved a pedal assist experience for conversion kits like you've never seen before!

NATURAL, SMOOTH RIDING
Equipped with our patent pending torque sensor module, we can give you a refined pedal assist system. The torque sensor module includes both a high-sensitivity torque sensor strain gauge module and a cadence sensing module. The high number of poles of the cadence sensor ensures that we can control the sensitivity to a much higher degree & provides the opportunity to fine-tune the firmware alongside rider inputs. The result? Unprecedented e-biking!

ALGORITHM IS EVERYTHING
Our PAS firmware algorithm is like the secret ingredient in a top chef's recipe. Without it, we'd be boring! BUT, we aimed for better, and so, we've accomplished it! Our engineers were put to the test and are proud to present you with an all-new pedal assist experience.

SEALED, INTEGRATED, & BUILT TO LAST
The new Gen 3 PAS (pedal assist system) sits integrated with the robust sprag clutch module so there's no external wiring that can get caught, bent, or accidentally snapped. The CYC PAS runs with both the torque and cadence signal collected and is processed by the controller to provide you with a pedal assist feeling like never before.

TESTED BY PROFESSIONALS
Not only have we written our firmware alongside our team riders, but we've made sure that all our MVPs got a chance to test it! This includes our partners at Ristretto Electric, Coast Cycles, and Fasterbikes EU to name a few. We also showcased the beta version at the 2022 EUROBIKE show where the feedback was phenomenal!

Kit Includes:

Motor: Photon (250w/750w)

Controller: CYC X6P Controller

Display: SW102 or DS103

Throttle: Thumb Throttle

Speed Sensor: Bluetooth sensor with Magnet

PAS Sensor: Integrated Torque 7 Cadence sensor

Bottom Bracket: ISIS splined, BSA/English Threaded & Press Fit options

Crank Arm Length: Aluminum ISIS 165mm or 175mm

Motor Spindle: 68-83mm, 100mm or 120mm

Min-Max Chainring: 34T, 38T, 42T, 50T

Wiring Harness: 2-1 included (other options available at extra cost)

Power connector: XT90 female

Technical Information

Specifications:

Rated Power: 250w/750w (CYC X6P)
Peak Power: 2000w
Peak Torque: 110Nm (CYC X6P)
Rated Voltage: 36-52v
Max RPM (At Crank): >300 RPM
Battery option: 36v-52v Battery
Weight: 3.2kg
Total Weight with crankset & BB: 4.5kg
Bracket Material: 7075-T6
Mobile App: Yes. CYC Ride Control.
Serviceable: Yes, Authorized Dealer only
Manufacturer Warranty: 2 Years, but shipping from HK is not included so it's not free to use.

Frame Compatibility:
BSA Threaded: 68-83mm, 100mm & 120mm
PRESSFIT: 41mm, 42mm & 46mm bottom bracket diameters (with adapter)
